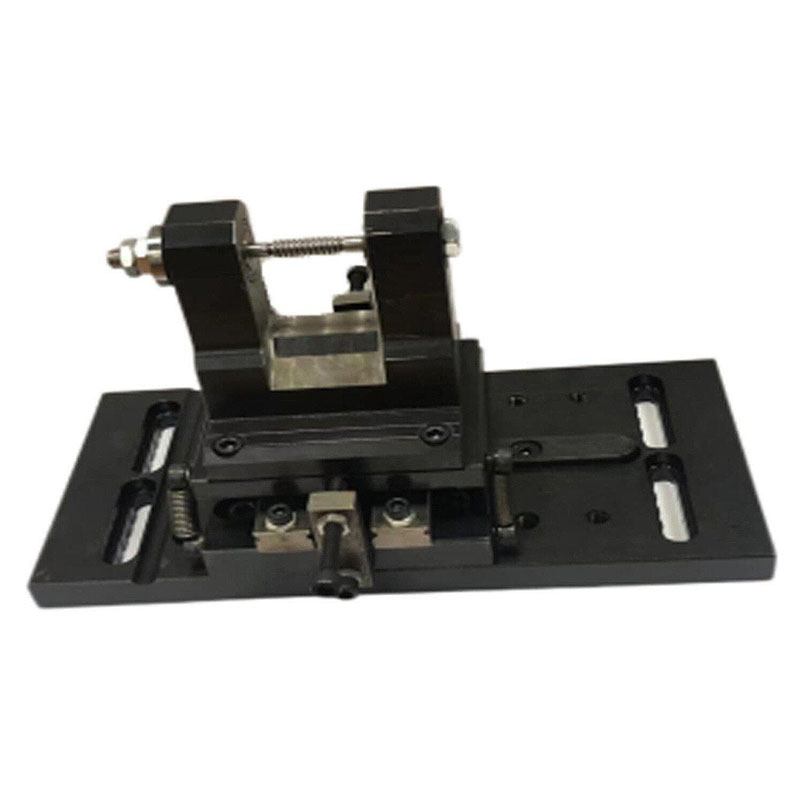

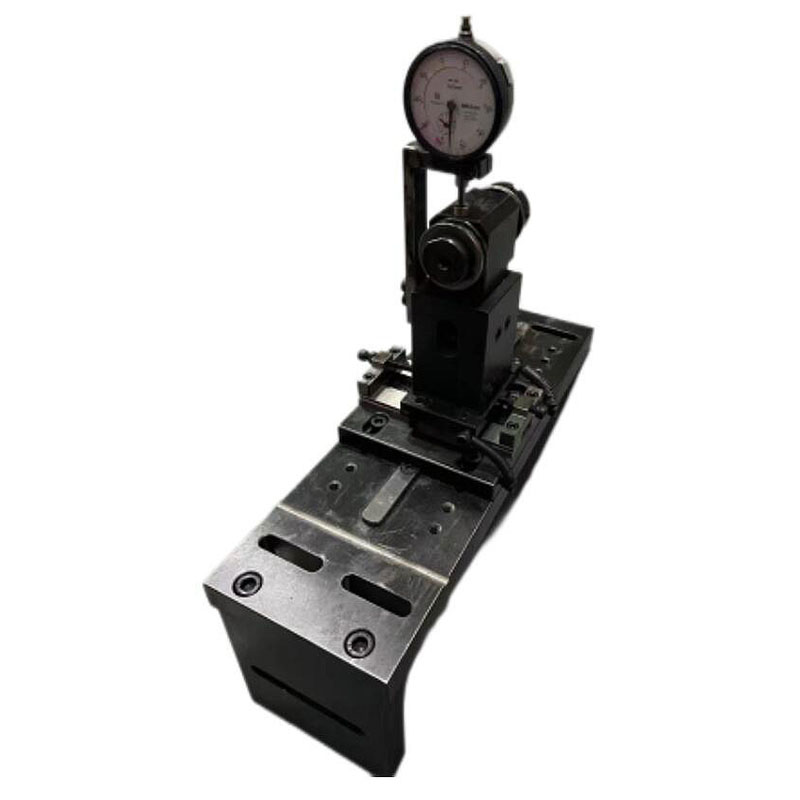

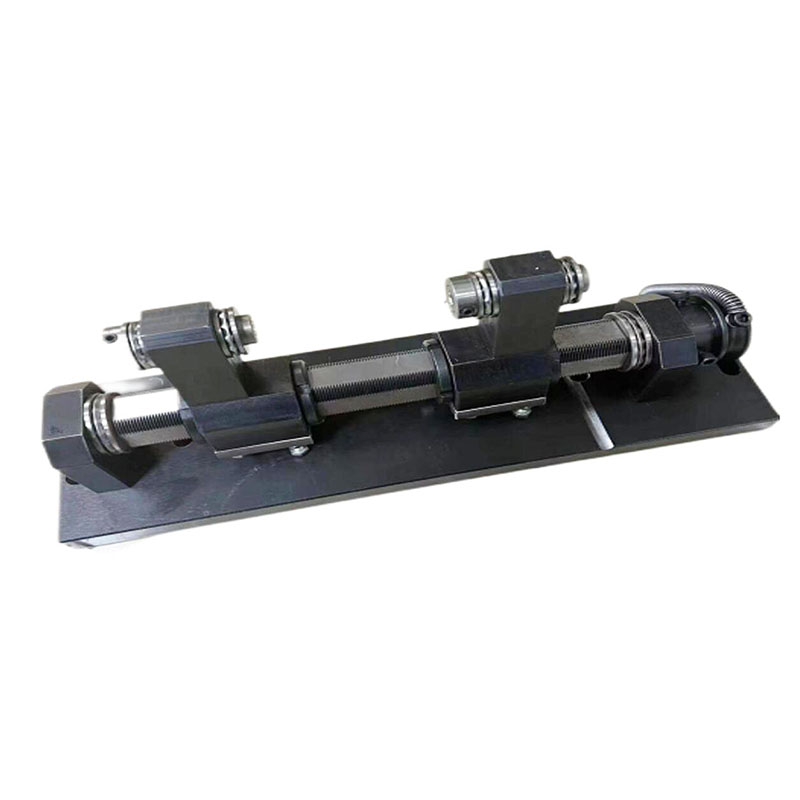

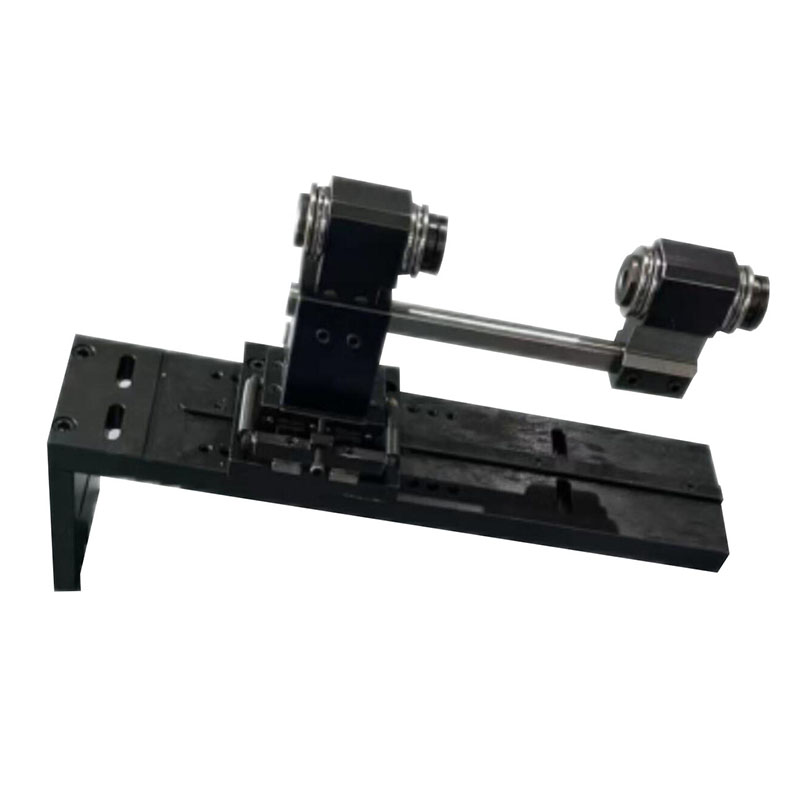

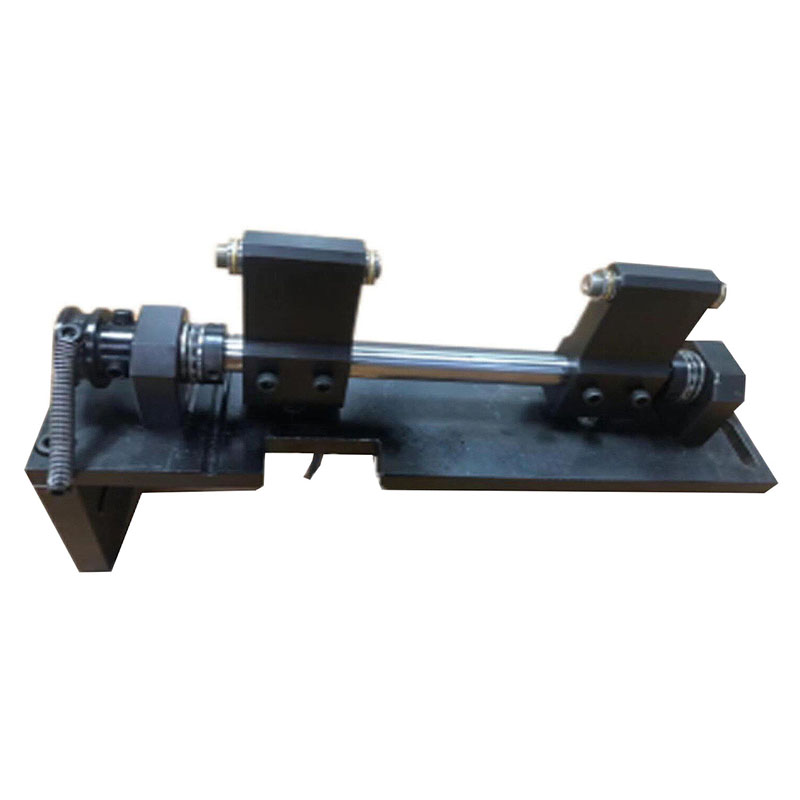

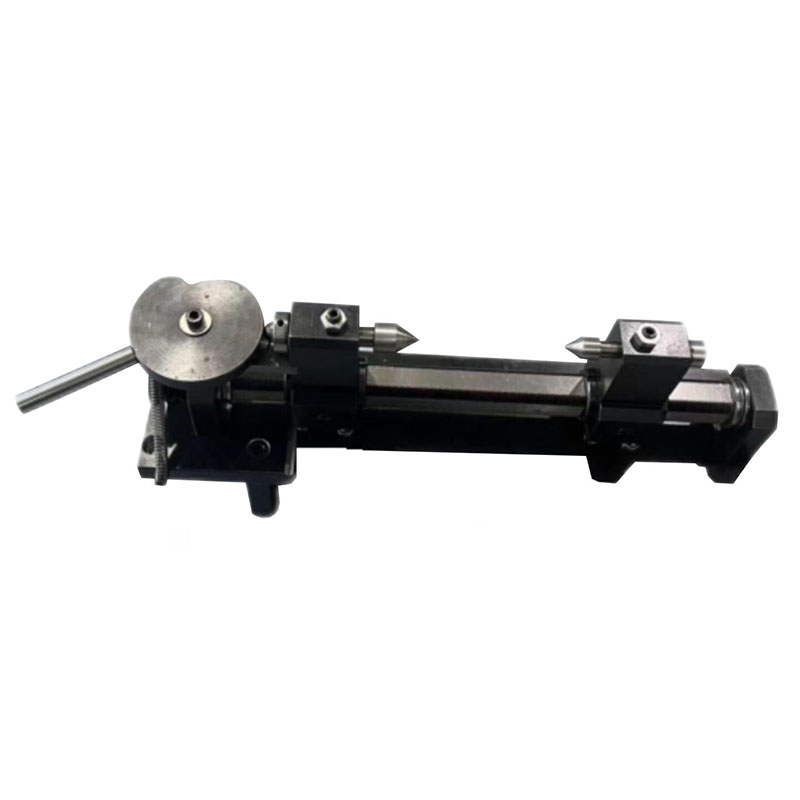

Swing-Arm Precision Thread Rolling Machine

As the professional manufacture, we would like to provide you NERES Swing-Arm Precision Thread Rolling Machine. And we will offer you the best after-sale service and timely delivery. The swing seat used for the thread rolling machine solves the problem that the long shaft is driven by the two tangential force of the roller wheel, so that it is difficult to ensure the accuracy of the position between the two roller wheels fixed by the long shaft, thus affecting the accuracy of the thread processing.

The main points of the technical scheme include the rear support for the shaft penetration, the front support connected to the rear support to support the end of the shaft, and the base for the rear support installation, The base includes a substrate and a fixed seat mounted on the substrate for rear rotation, The rear support plate includes the rear support plate connected to the front support plate and the shock absorber seat rotating coaxially with the rear support plate, And the circumferential damping spring is installed between the damping seat and the substrate around the rotation axis of the damping seat to stretch / compress by the support rotation, Using the circumferential damping spring to mitigate the vibration influence of the rolling wheel on the support, Thus ensuring the accuracy of the position between the two rolling wheels, The purpose of improving the thread machining precision.
